ADAM Audio D3V 3.5 inch Active Studio Monitors (Black)

14 People watching this product now!
Category:

 66,500.00

Specs

  • Frequency Response @ -3 =dB: 48Hz–22.6kHz
  • Frequency Response @ -6dB: 45Hz–23.2kHz
  • Max SPL in full space at 1 m with sine bursts (average 100 – 6kHz) at 3% THD (rms / peak): 92 / 96dB SPL
  • Crossover Frequency: 4.0kHz
  • Drivers
  • Passive Radiator Basket Diameter: 3.5”
  • Woofer Cone Material: Single-piece aluminum
  • Woofer Basket Diameter: 3.5”
  • Woofer Voice Coil Diameter: 1” (25 mm)
  • Woofer Grille: Painted steel
  • Tweeter Type: D-ART
  • Tweeter Velocity Transform Ratio: 4 to 1
  • Audio Input/Output Connectors
  • Analog Connectors: 2 x balanced 1/4″ TRS
  • Max. Input Level: +9dBu
  • Digital Connector: USB Type C
  • Digital Audio Signal: Class-compliant USB 1.1
  • Sample Rates Supported: 32, 44.1, 48kHz
  • Bit Depth: 24-bit
  • Headphone Output Connector
  • Connector: 3.5 mm TRS mini-jack
  • Headphone Output Impedance: 32 ohms
  • Signal Processing
  • AD Converter: 24-bit
  • Internal Sample Rate: 48kHz
  • Internal Processing Bit Depth: 28-bit
  • Latency: 4.0 ms
  • Protection: Independent peak and thermal limiters for each driver, and amplifier thermal limiters
  • Amplification
  • Woofer Amplifier:
  • Type: PWM
  • Peak (10% THD, limiter deactivated): 2 x 80W
  • RMS (1% THD, limiter deactivated): 2 x 70W
  • Tweeter Amplifier:
  • Type: PWM
  • Peak (10% THD, limiter deactivated): 2 x 40W
  • RMS (1% THD, limiter deactivated): 2 x 30W
  • Control Options (via Backplate)
  • Input Sensitivity: 0dBu = 88dB SPL at 1 m @ 0dB level setting
  • Volume Knob Controls: Loudspeaker and headphone level
  • Volume Knob Press Functions: Mute, standby, input select, channel swap
  • Input Selection: Analogue, USB-C
  • Channel Order: Normal, L/R swapped
  • Backplate Room Adaption – Position (Bass): 0, -3, -6dB
  • Backplate Room Adaption – Desk (Low-mid and Mid): 0, -3, -6dB and 0, -2, -4dB
  • Backplate Room Adaption – Room Acoustics (Treble): 0, -1.5, -3dB
  • Remote Control Options: USB-C
  • General Data
  • Display: Front panel multi-colour logo
  • Cabinet Design: Dual passive radiator
  • Cabinet Material: Painted ABS Polycarbonate
  • Mounting Options: Flat on desk or loudspeaker stand, angled 15 degrees upwards on desk using supplied foot, threaded insert (3/8″) on the bottom of the cabinet for microphone stand
  • AC Input Voltage: 100 – 240V, 50/60Hz
  • Power Rating: 60W max.
Products Description

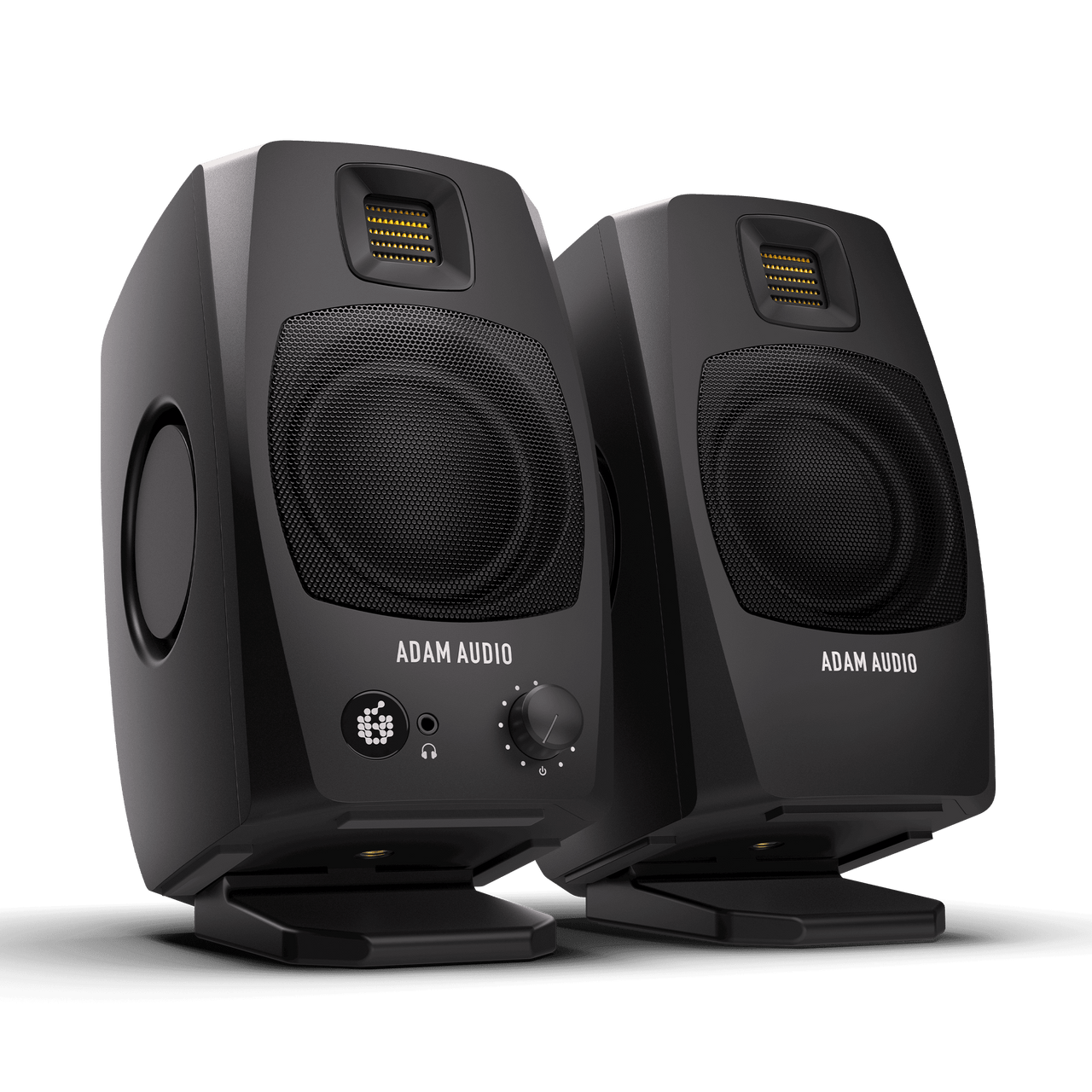

The ADAM Audio DV3 active studio monitors offer clear, high-quality sound for your studio. They have 3.5″ aluminum woofers, dual 3.5″ passive radiators, and 1.5″ ribbon tweeters to deliver balanced, detailed audio. With a USB-C connection, you can plug them straight into your computer for smooth playback of your music projects.

These speakers are designed to reveal all the small details in your mix. The woofers and radiators let you hear deep bass sounds, while the ribbon tweeters provide crisp highs. This helps you create a balanced and professional mix.

The DV3s are easy to set up. Just plug them in, and they’ll play high-quality 24-bit/48kHz audio without needing extra equipment. They work with Mac, Windows, and iOS devices for hassle-free mixing.

The DV3s come with three switches on the back to help the speakers sound good in any room. One switch adjusts the bass if the speakers are near walls, another changes the midrange depending on your desk size, and the last adjusts the treble based on your room’s acoustics.

The DV3s also look great, with a sleek black design and a light-up logo on the front. They come with stands for the best listening angle, and you can also mount them on microphone stands. These monitors are a great choice for music creators looking for a compact, stylish, and reliable studio speaker.

Additional information

Specs

  • Frequency Response @ -3 =dB: 48Hz–22.6kHz
  • Frequency Response @ -6dB: 45Hz–23.2kHz
  • Max SPL in full space at 1 m with sine bursts (average 100 – 6kHz) at 3% THD (rms / peak): 92 / 96dB SPL
  • Crossover Frequency: 4.0kHz
  • Drivers
  • Passive Radiator Basket Diameter: 3.5”
  • Woofer Cone Material: Single-piece aluminum
  • Woofer Basket Diameter: 3.5”
  • Woofer Voice Coil Diameter: 1” (25 mm)
  • Woofer Grille: Painted steel
  • Tweeter Type: D-ART
  • Tweeter Velocity Transform Ratio: 4 to 1
  • Audio Input/Output Connectors
  • Analog Connectors: 2 x balanced 1/4″ TRS
  • Max. Input Level: +9dBu
  • Digital Connector: USB Type C
  • Digital Audio Signal: Class-compliant USB 1.1
  • Sample Rates Supported: 32, 44.1, 48kHz
  • Bit Depth: 24-bit
  • Headphone Output Connector
  • Connector: 3.5 mm TRS mini-jack
  • Headphone Output Impedance: 32 ohms
  • Signal Processing
  • AD Converter: 24-bit
  • Internal Sample Rate: 48kHz
  • Internal Processing Bit Depth: 28-bit
  • Latency: 4.0 ms
  • Protection: Independent peak and thermal limiters for each driver, and amplifier thermal limiters
  • Amplification
  • Woofer Amplifier:
  • Type: PWM
  • Peak (10% THD, limiter deactivated): 2 x 80W
  • RMS (1% THD, limiter deactivated): 2 x 70W
  • Tweeter Amplifier:
  • Type: PWM
  • Peak (10% THD, limiter deactivated): 2 x 40W
  • RMS (1% THD, limiter deactivated): 2 x 30W
  • Control Options (via Backplate)
  • Input Sensitivity: 0dBu = 88dB SPL at 1 m @ 0dB level setting
  • Volume Knob Controls: Loudspeaker and headphone level
  • Volume Knob Press Functions: Mute, standby, input select, channel swap
  • Input Selection: Analogue, USB-C
  • Channel Order: Normal, L/R swapped
  • Backplate Room Adaption – Position (Bass): 0, -3, -6dB
  • Backplate Room Adaption – Desk (Low-mid and Mid): 0, -3, -6dB and 0, -2, -4dB
  • Backplate Room Adaption – Room Acoustics (Treble): 0, -1.5, -3dB
  • Remote Control Options: USB-C
  • General Data
  • Display: Front panel multi-colour logo
  • Cabinet Design: Dual passive radiator
  • Cabinet Material: Painted ABS Polycarbonate
  • Mounting Options: Flat on desk or loudspeaker stand, angled 15 degrees upwards on desk using supplied foot, threaded insert (3/8″) on the bottom of the cabinet for microphone stand
  • AC Input Voltage: 100 – 240V, 50/60Hz
  • Power Rating: 60W max.
