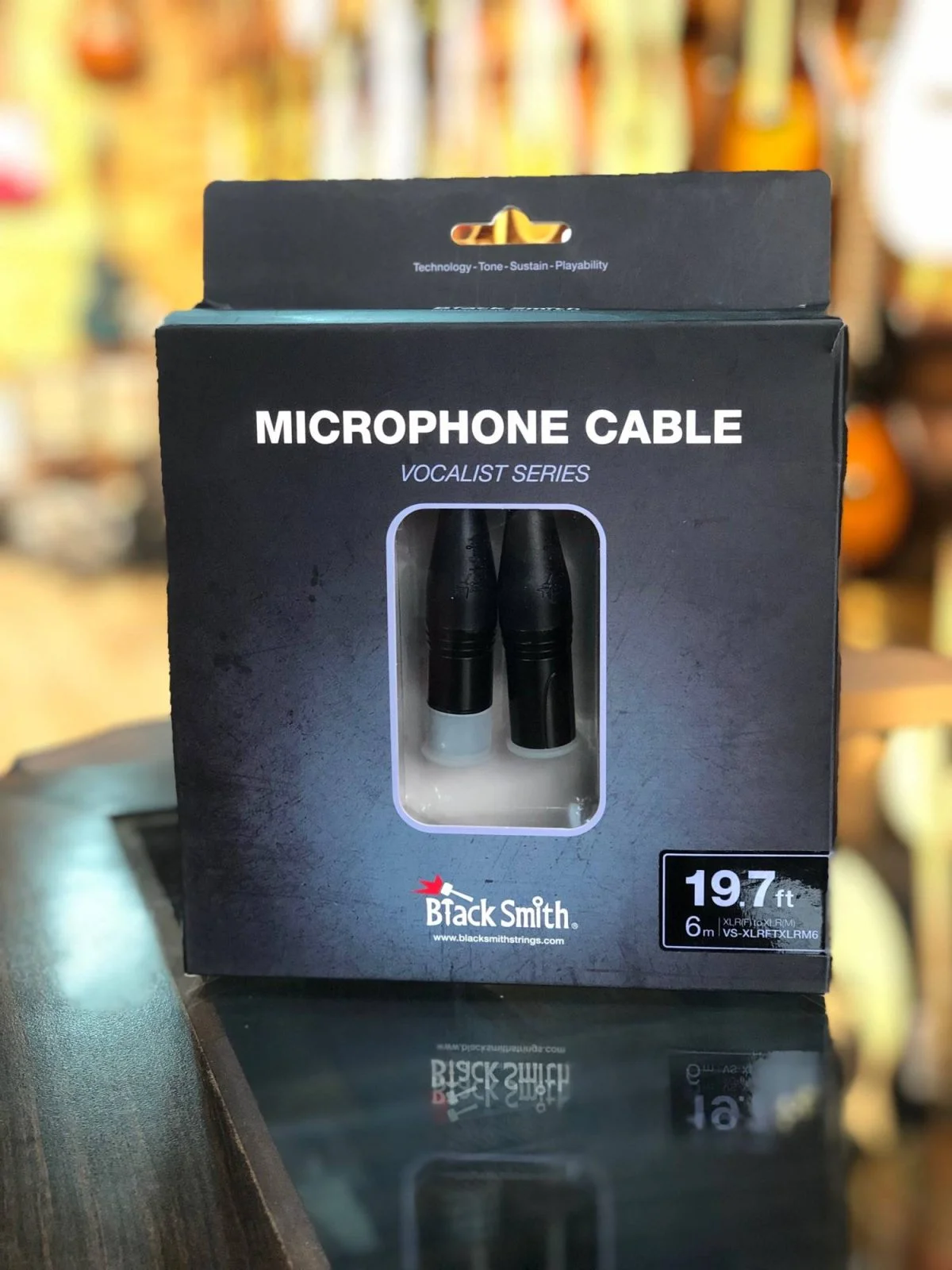

Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m
15
People watching this product now!
₨ 4,500.00
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Specifications of Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m
- Brand
BLACKSMITH
- SKU
122453271_NP-1033309424
Products Description
Product details of Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m
- Tip Rod and Handle: 1/4″ Plug with Gold plated copper alloy
- Sleeve(Clamp) Terminal: Tin-plated steel
- Insulation: Thermoplastic
- Dielectric Withstanding Voltage:500Vac
- Insulation Resistance: 20 Mega ohms
- Operation Temperature:-20°C TO
- +65°C
- Cable specs for Instrument and flat patch cable:
- Cable: 22awg OFC+SP64*0.1 OFC
- Conductor size: 22awg OFC
- Construction(No./mm):170.16 OFC
- Diameter: 0.52
- Insulation Thickness:0.6MM
- Diameter:1.7
- Inner Jacket Thickness:0.3 MM
- Diameter:2.3MM
- Shield-Diameter:2.8MM
- Jacket Thickness:1.5MM
- Diameter:6.0MM
- Maximum conductor resistance: 26.9= (OHM/KM)
- Capacitance (1kHz): Approx.60(pF/m)
- Insulation Material: PE
- Special Inner Shield: PVC
- Outer Shield: OFC TWINE SHIELD
- Jacket: PVC OD6.0mm
- DE Resistance: Conductor 5.5 ohm/100m Shield 2.6
- ohm/100m
