Takstar MX630 OTG USB Audio Interface
General
- Product Type: OTG USB Audio Interface / External Sound Card
- Compatible Systems: Windows, macOS, iOS, Android
- USB Standard: USB 2.0
- Audio Resolution: Up to 24-bit / 96kHz
- Supported Drivers: WHQL Certified, ASIO 2.0, MME, WDM, DirectSound
- OTG Support: Yes (Type-C)
- Power Supply: DC 12V / 1A External Adapter
- Dimensions: 140 × 140 × 33.5mm
- Weight: Approx. 465g
Microphone / Instrument Inputs
- Two XLR + 6.35mm Combo Inputs
- Frequency Response: 20Hz–20kHz (±1dB)
- Adjustable Gain: >50dB
- Maximum Gain: +54dB
- Dynamic Range: 80dB
- Signal-to-Noise Ratio: 75dB
- THD+Noise: <0.025%
Line / Accompaniment Input
- Frequency Response: 20Hz–20kHz (±1dB)
- Dynamic Range: 97dB
- Signal-to-Noise Ratio: 100dB
- THD+Noise: <0.0031%
Headphone Output
- Two 6.35mm Headphone Outputs
- Frequency Response: 20Hz–20kHz
- Output Power: 90mW / 100Ω
- Signal-to-Noise Ratio: 103dB
- Dynamic Range: 99dB
- Supports 32–600Ω Headphones
Line Outputs
- Dual Balanced 6.35mm TRS Outputs (Left & Right)
- Frequency Response: 20Hz–20kHz
- Dynamic Range: 98dB
- Signal-to-Noise Ratio: 102dB
- Maximum Output Level: +1.2dBV
Connectivity
- 2 × XLR + 6.35mm Combo Inputs
- 2 × 6.35mm Headphone Outputs
- Dual 6.35mm Balanced Speaker Outputs
- 3.5mm Mobile Recording Input
- 3.5mm Accompaniment Input
- USB 2.0 Data Port
- Type-C OTG Port
- DC 12V Power Input
Package Includes
- MX630 OTG USB Audio Interface ×1
- Audio Cable ×2
- Type-C Data Cable ×1
- Power Adapter ×1
- 3.5mm to 6.35mm Adapter ×2
- User Manual ×1
The Takstar MX630 OTG USB Audio Interface is a professional external sound card designed for musicians, podcasters, streamers, content creators, vocalists, and home studio users who need high-quality audio recording and playback.
Built for versatility, it supports Windows, macOS, iOS, and Android devices, making it easy to connect to computers, tablets, and smartphones for recording, live streaming, podcasting, karaoke, online meetings, and music production.
Featuring 24-bit/96kHz high-resolution audio, the MX630 delivers clear, detailed, and natural sound with ultra-low latency through its USB 2.0 interface. The interface uses a WHQL-certified Windows driver and supports the ASIO 2.0 standard, allowing professional recording software to run smoothly and even enabling multiple recording applications simultaneously.

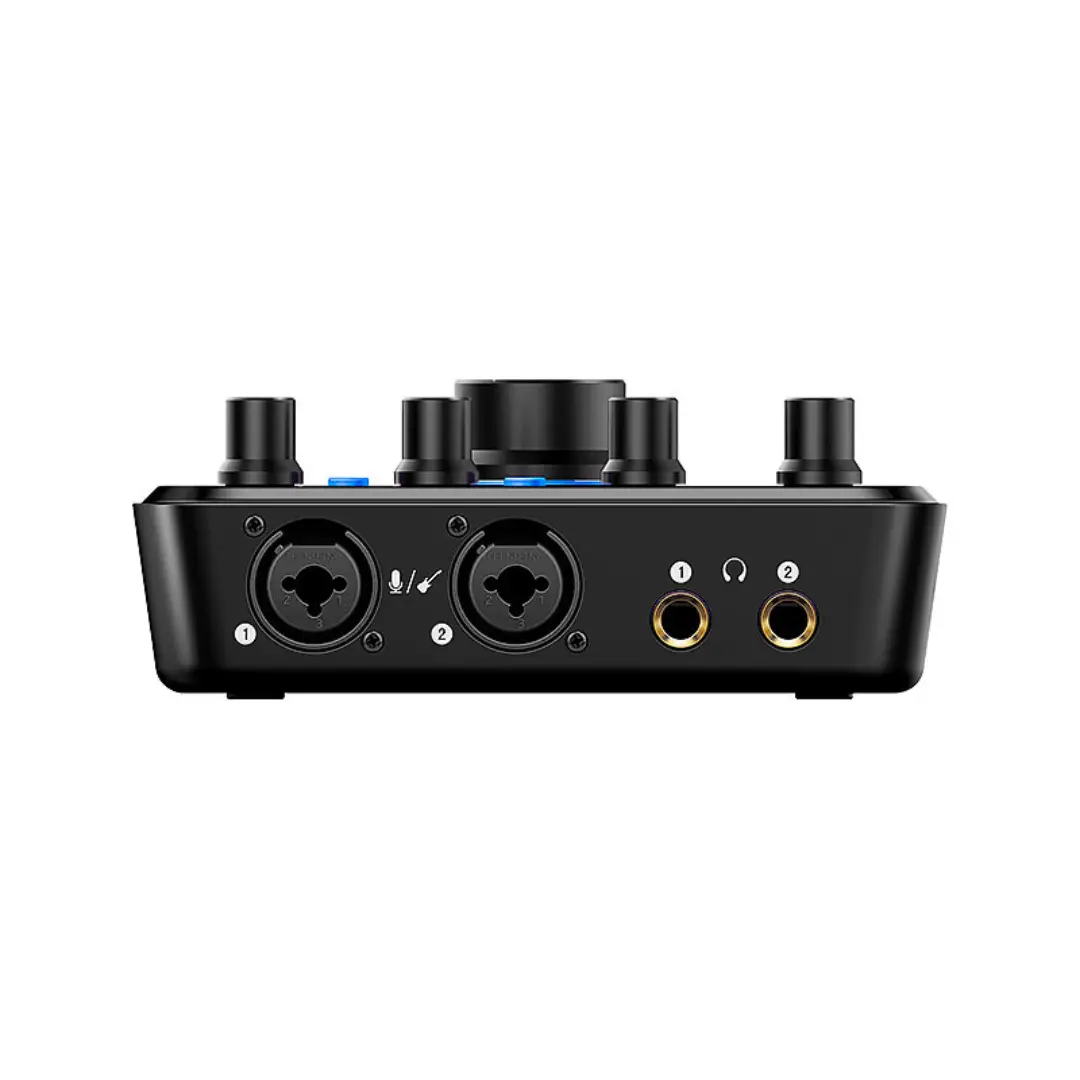

It is equipped with two XLR/TRS combo inputs that can connect microphones or musical instruments such as guitars and keyboards, making it ideal for solo performers or duet recordings.
Dedicated volume controls for microphones, headphones, speakers, and mobile recording provide precise audio adjustment during sessions. The built-in OTG Type-C connection allows direct, lossless audio recording and live broadcasting on compatible smartphones without sacrificing sound quality.
Dual balanced 6.35mm TRS outputs easily connect to active studio monitors, while two headphone outputs provide flexible monitoring for recording and streaming.
With its durable design, stable performance, and comprehensive connectivity, the MX630 is an excellent all-in-one audio interface for professional recording, live streaming, podcast production, music creation, and online content creation.
