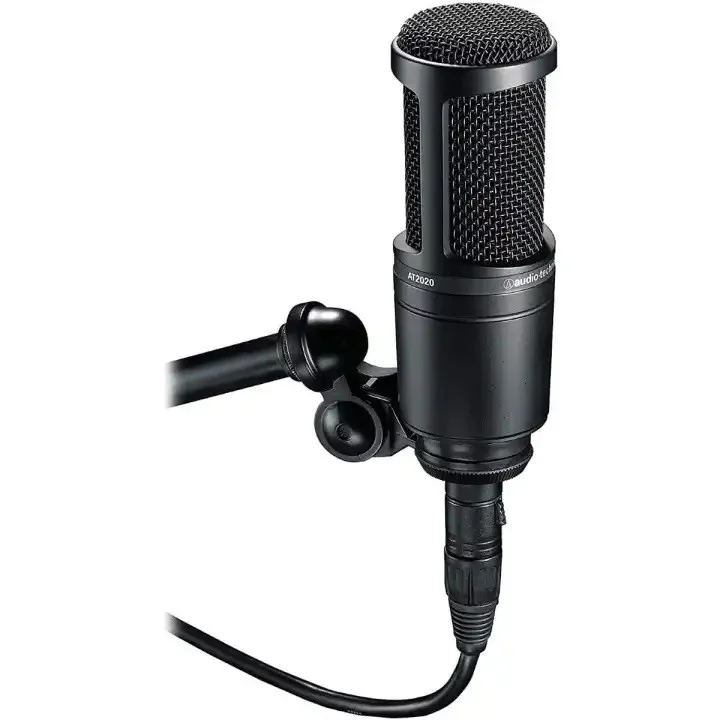

Audio-Technica AT2020 Cardioid Condenser Microphone

Audio-Technica AT2020 Cardioid Condenser Microphone

Posted by
0
Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20 - 20,000 Hz
Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa
Maximum Input Sound Level 144 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range 124 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 74 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 2 mA typical
Weight 345g
Dimensions 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch

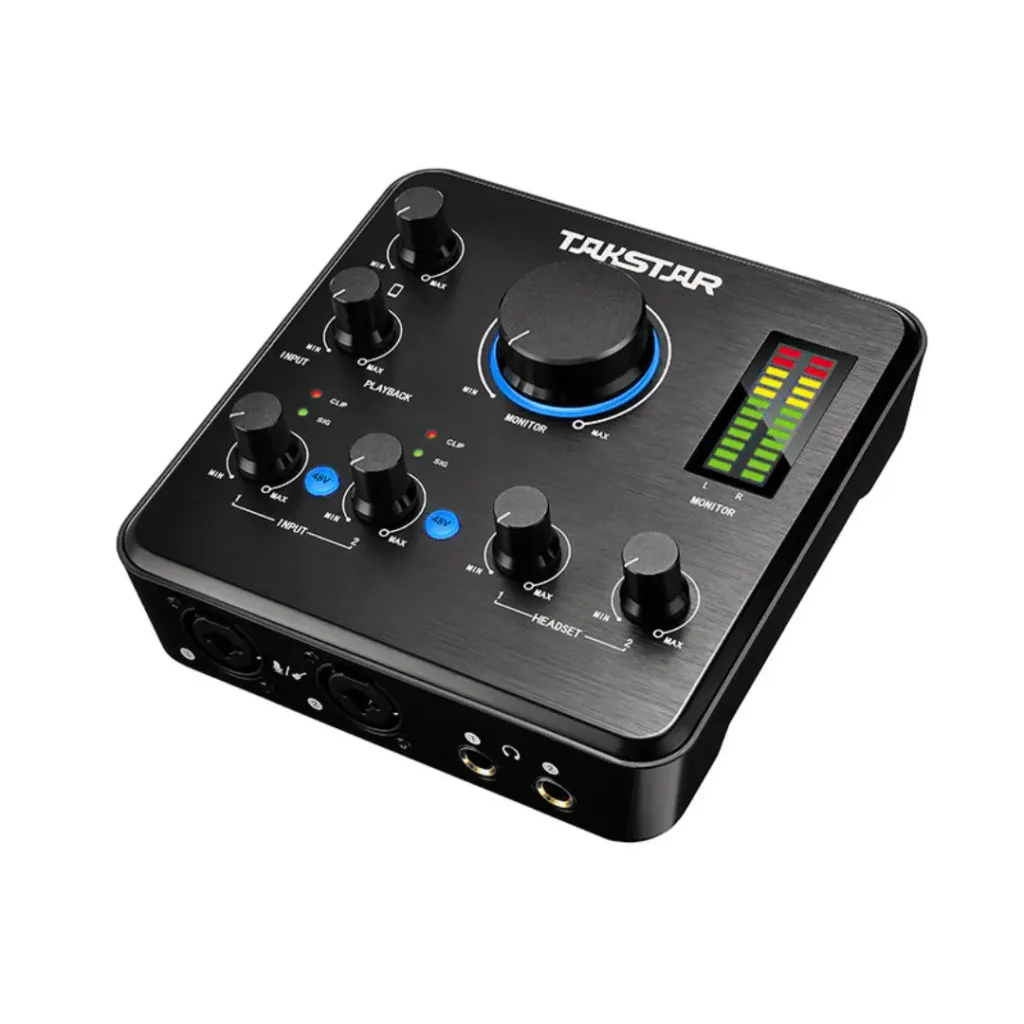

MX630 Webcast Pro Sound Card

Takstar MX630 Webcast Pro Sound Card

Posted by
0

General

  • Professional USB sound card for live streaming, podcasting, recording, and karaoke
  • Compatible with Windows 7, 8, and 10
  • USB 2.0 high-speed data transmission with ultra-low latency
  • Supports 24-bit/96kHz high-resolution audio
  • ASIO 2.0 driver support for professional recording software and VST plugins
  • Supports MME, WDM, and DirectSound audio standards

Audio Inputs & Outputs

  • 2 × XLR + 6.35mm combo microphone/instrument inputs
  • 2 × 6.35mm headphone outputs
  • 2 × 6.35mm balanced left/right speaker outputs
  • 1 × 3.5mm smartphone connection for dual-device live streaming
  • 1 × 3.5mm accompaniment input

Microphone Performance

  • Frequency Response: 20Hz–20kHz
  • Adjustable Gain: Over 50dB
  • Gain Range: +54dB
  • Low distortion for clean vocal recording

Headphone Output

  • Frequency Response: 20Hz–20kHz
  • Dynamic Range: 99dB
  • Signal-to-Noise Ratio: 103dB
  • Output Power: 90mW/100Ω
  • Supports headphones from 32Ω to 600Ω

Line Output

  • Frequency Response: 20Hz–20kHz
  • Dynamic Range: 98dB
  • Signal-to-Noise Ratio: 102dB
  • Maximum Output Level: +0dBV

Power & Build

  • Power Supply: DC 12V / 1A
  • Operating Temperature: 0°C–40°C
  • Dimensions: 140 × 140 × 33.5mm
  • Weight: Approximately 465g

Package Includes

  • MX630 Webcast Pro Sound Card
  • USB Type-C Data Cable
  • 2 × Audio Cables
  • Power Adapter
  • User Manual

Packaging

  • Color Box
  • Box Size: 275 × 177 × 78mm

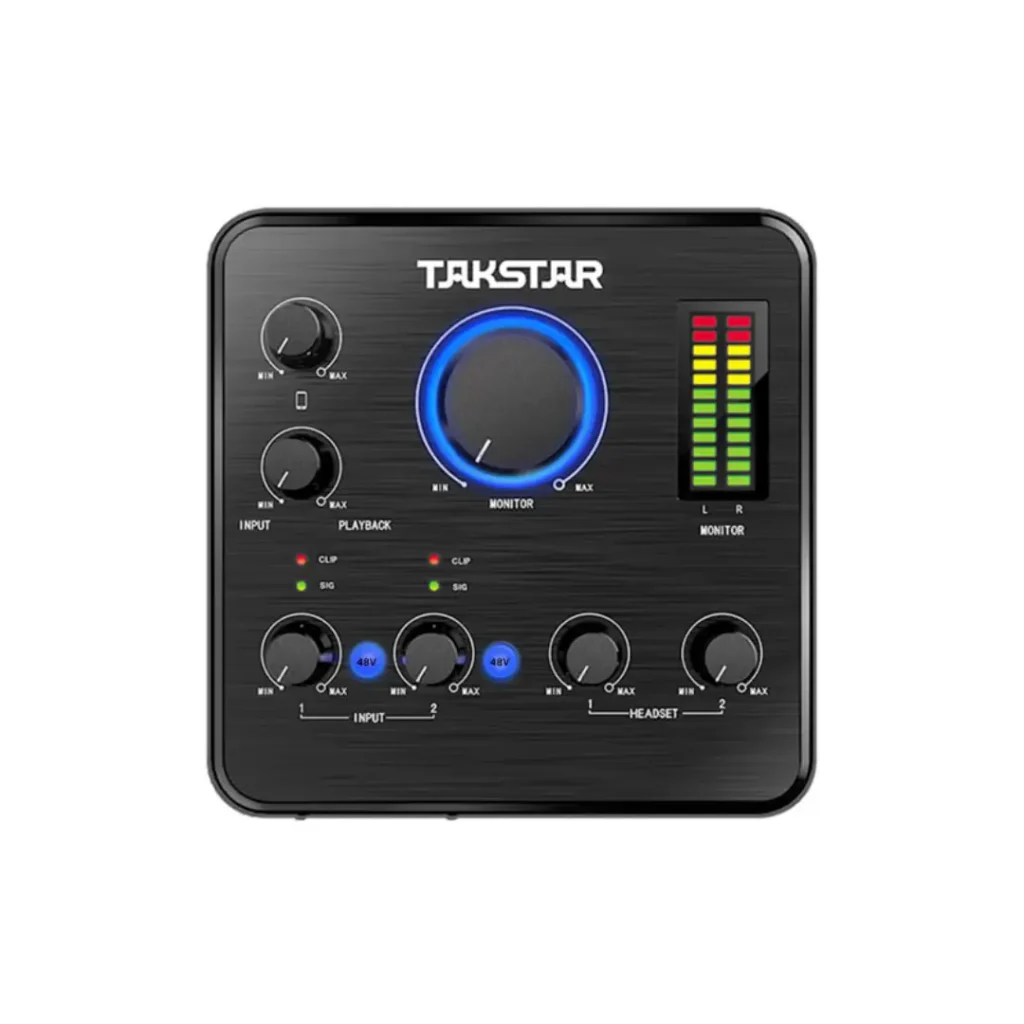

Takstar MX630 OTG USB Audio Interface

Posted by
0

General

  • Product Type: OTG USB Audio Interface / External Sound Card
  • Compatible Systems: Windows, macOS, iOS, Android
  • USB Standard: USB 2.0
  • Audio Resolution: Up to 24-bit / 96kHz
  • Supported Drivers: WHQL Certified, ASIO 2.0, MME, WDM, DirectSound
  • OTG Support: Yes (Type-C)
  • Power Supply: DC 12V / 1A External Adapter
  • Dimensions: 140 × 140 × 33.5mm
  • Weight: Approx. 465g

Microphone / Instrument Inputs

  • Two XLR + 6.35mm Combo Inputs
  • Frequency Response: 20Hz–20kHz (±1dB)
  • Adjustable Gain: >50dB
  • Maximum Gain: +54dB
  • Dynamic Range: 80dB
  • Signal-to-Noise Ratio: 75dB
  • THD+Noise: <0.025%

Line / Accompaniment Input

  • Frequency Response: 20Hz–20kHz (±1dB)
  • Dynamic Range: 97dB
  • Signal-to-Noise Ratio: 100dB
  • THD+Noise: <0.0031%

Headphone Output

  • Two 6.35mm Headphone Outputs
  • Frequency Response: 20Hz–20kHz
  • Output Power: 90mW / 100Ω
  • Signal-to-Noise Ratio: 103dB
  • Dynamic Range: 99dB
  • Supports 32–600Ω Headphones

Line Outputs

  • Dual Balanced 6.35mm TRS Outputs (Left & Right)
  • Frequency Response: 20Hz–20kHz
  • Dynamic Range: 98dB
  • Signal-to-Noise Ratio: 102dB
  • Maximum Output Level: +1.2dBV

Connectivity

  • 2 × XLR + 6.35mm Combo Inputs
  • 2 × 6.35mm Headphone Outputs
  • Dual 6.35mm Balanced Speaker Outputs
  • 3.5mm Mobile Recording Input
  • 3.5mm Accompaniment Input
  • USB 2.0 Data Port
  • Type-C OTG Port
  • DC 12V Power Input

Package Includes

  • MX630 OTG USB Audio Interface ×1
  • Audio Cable ×2
  • Type-C Data Cable ×1
  • Power Adapter ×1
  • 3.5mm to 6.35mm Adapter ×2
  • User Manual ×1

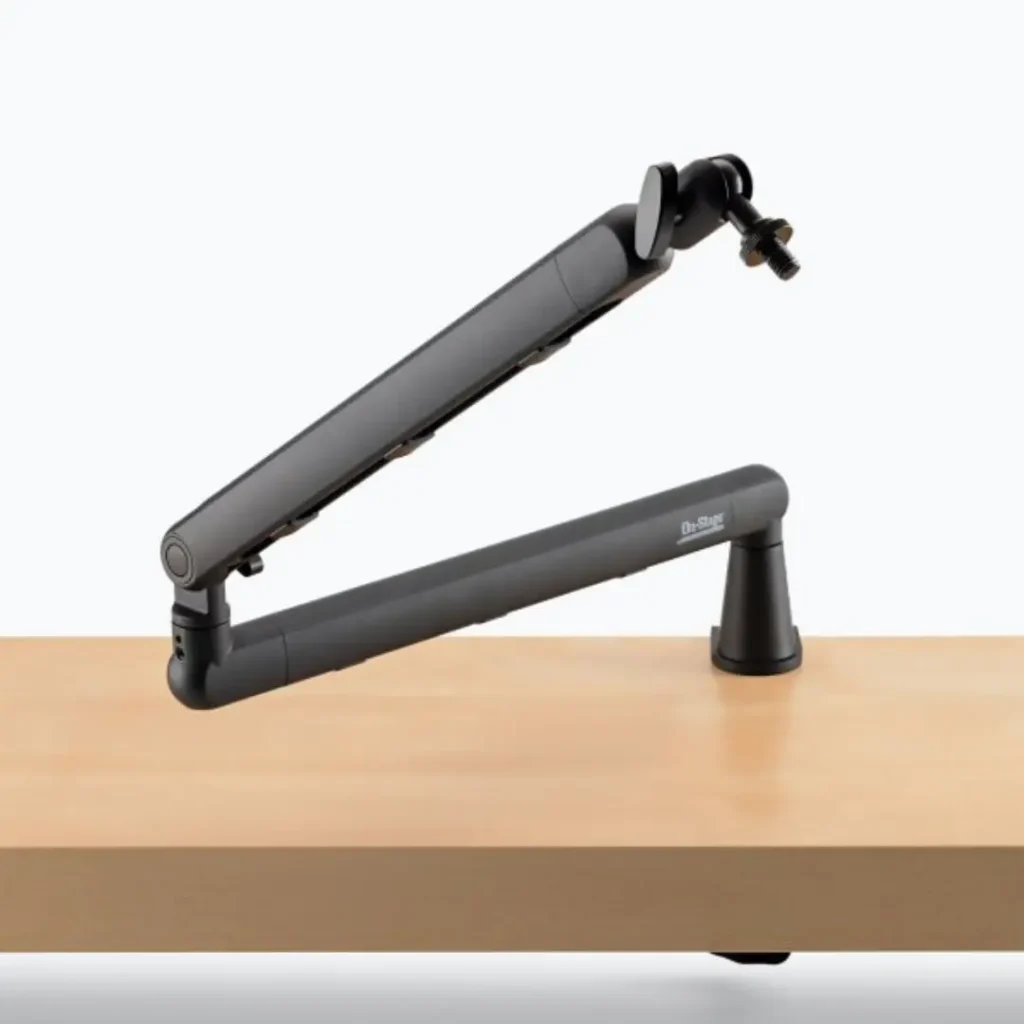

Low-Profile Broadcast Boom Arm

On Stage Low-Profile Broadcast Boom Arm

Posted by
0
  • Product Type: Low-Profile Broadcast Boom Arm
  • Application: Podcasting, Broadcasting, Live Streaming, Video Conferencing, Content Creation
  • Design: Low-Profile Under-Desk Extension
  • Maximum Reach: 29 in (73.7 cm)
  • Upper Arm Length: 15.5 in (39.4 cm)
  • Lower Arm Length: 13.5 in (34.3 cm)
  • Weight Capacity: 3.5 lbs (1.6 kg)
  • Microphone Thread: 5/8"-27
  • Swivel Range: 360° Rotation on Upper and Lower Arms
  • Microphone Angle Adjustment: Fully Adjustable
  • Cable Management: Integrated Cable Routing Channels with Cable Clips
  • Mounting Options: C-Clamp and Flange Mount Included
  • Clamp Opening: Fits Desk Thickness up to 2.5 in (6.35 cm)
  • Compatible Devices: Microphones, Shock Mounts, Cameras, Ring Lights, Phone & Tablet Holders
  • Included Accessories: Camera Mount Adapter, Cable Management Clips, C-Clamp, Flange Mount
  • Construction: Heavy-Duty Plastic
  • Color: Black
  • Ideal For: Podcasts, Streaming, Voice-Overs, Broadcast Studios, Gaming Setups, Home Studios, Professional Content Creation

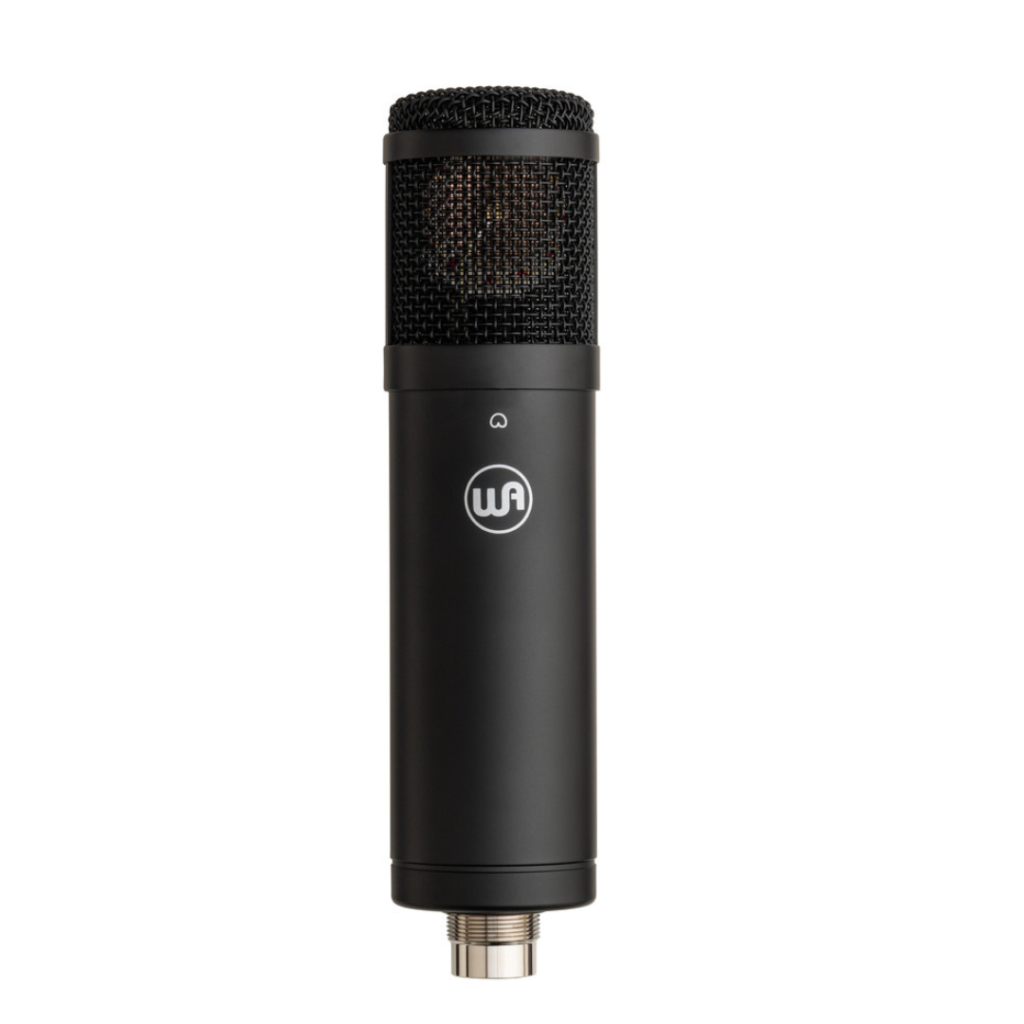

Warm Audio WA-47jr SE | Black

Posted by
0
  • Microphone Type: Large-diaphragm FET condenser (transformerless)
  • Capsule: Custom true reproduction of the classic K47-style dual-diaphragm capsule (same as flagship WA-47)
  • Polar Patterns: Cardioid, omnidirectional, and figure-8 (standard WA-47jr); fixed cardioid (SE version)
  • Circuit: Fully discrete FET with modern low-noise design
  • Pad: -10 dB switchable (standard version only)
  • High-Pass Filter: 70 Hz switchable (standard version only)
  • Max SPL: Up to 157 dB with pad engaged
  • Self-Noise: Ultra-low
  • Dynamic Range: Exceptional for professional clarity
  • Build: Durable metal body, available in nickel or black finish
